DC Motor H-Bridge / Solenoid Control

Bidirectional DC Motor Drive  •  Solenoid Switching  •  OEM Available  •  Made in USA

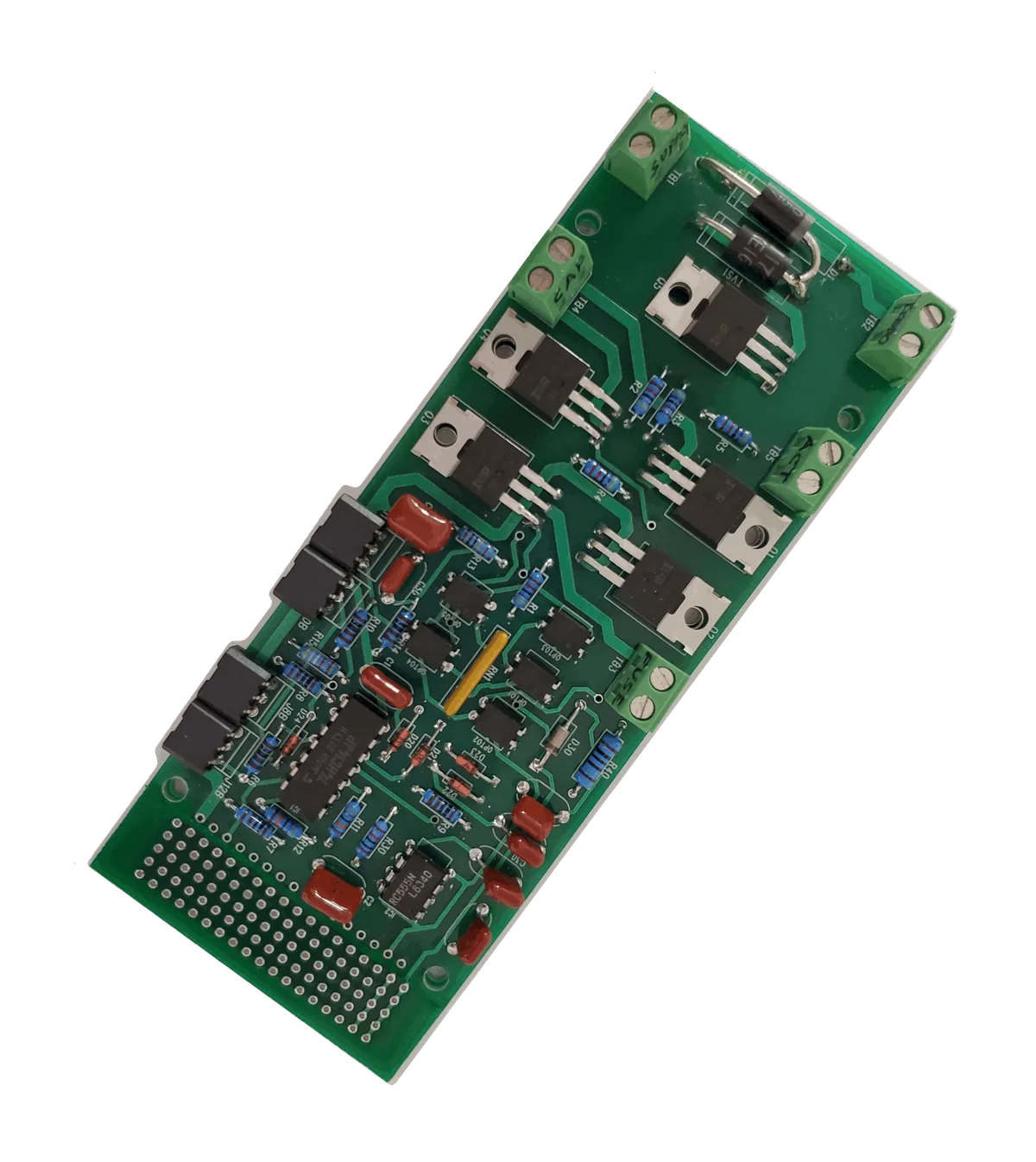

DC Motor H-Bridge Solenoid Control Board

Technical Specifications

Input Power – Control +12 VDC
Input Power – Motor +12 VDC, fused @ 5A
Input Power – Solenoid +12 VDC, fused @ 5A
Control Signals (3.3 VDC) Motor Enable  •  Forward / Reverse  •  Solenoid ON/OFF
Encoder Input (3.3 VDC) Open collector – square wave
Overall Dimensions W 2.35" × L 6.00" × H 1.11"   (59.69 mm × 152.4 mm × 28.19 mm)
Mounting Hole Pattern 4 holes, 0.125" dia.  •  4.2" × 1.95" pattern

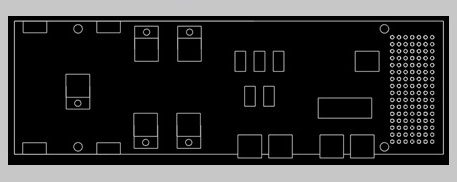

Board Layout – Topographical View

DC Motor H-Bridge Board Topographical Layout
