Water Monitor Shut-Off System



Primary Purpose     -    Mitigate/Minimize/Prevent Water Damage



Secondary Benefits  -  Leak Detection, Detection of Pump Failure, Water System Testing,                                                                                 Building/Homeowners Insurance discount

      FEATURES



      Designed to Accommodate - Private Well / Pump ...Pressure Tank  Water Systems

                                                      -  System  Does NOT  require access to 'Cloud' server or Subscription service
                                                                        (Insurance Co. May require 3rd party monitoring for discount)

      Continuous Monitoring of :

                                             -  PRESSURE - two(2) transducers... Well Pump/Pressure Tank and Building Pressure

                                             -  FLOW (Gallons per minute)

                                             -  TEMPERATURE  &  HUMIDITY

                                             -  WELL PUMP MOTOR CURRENT (Amps)

               System:

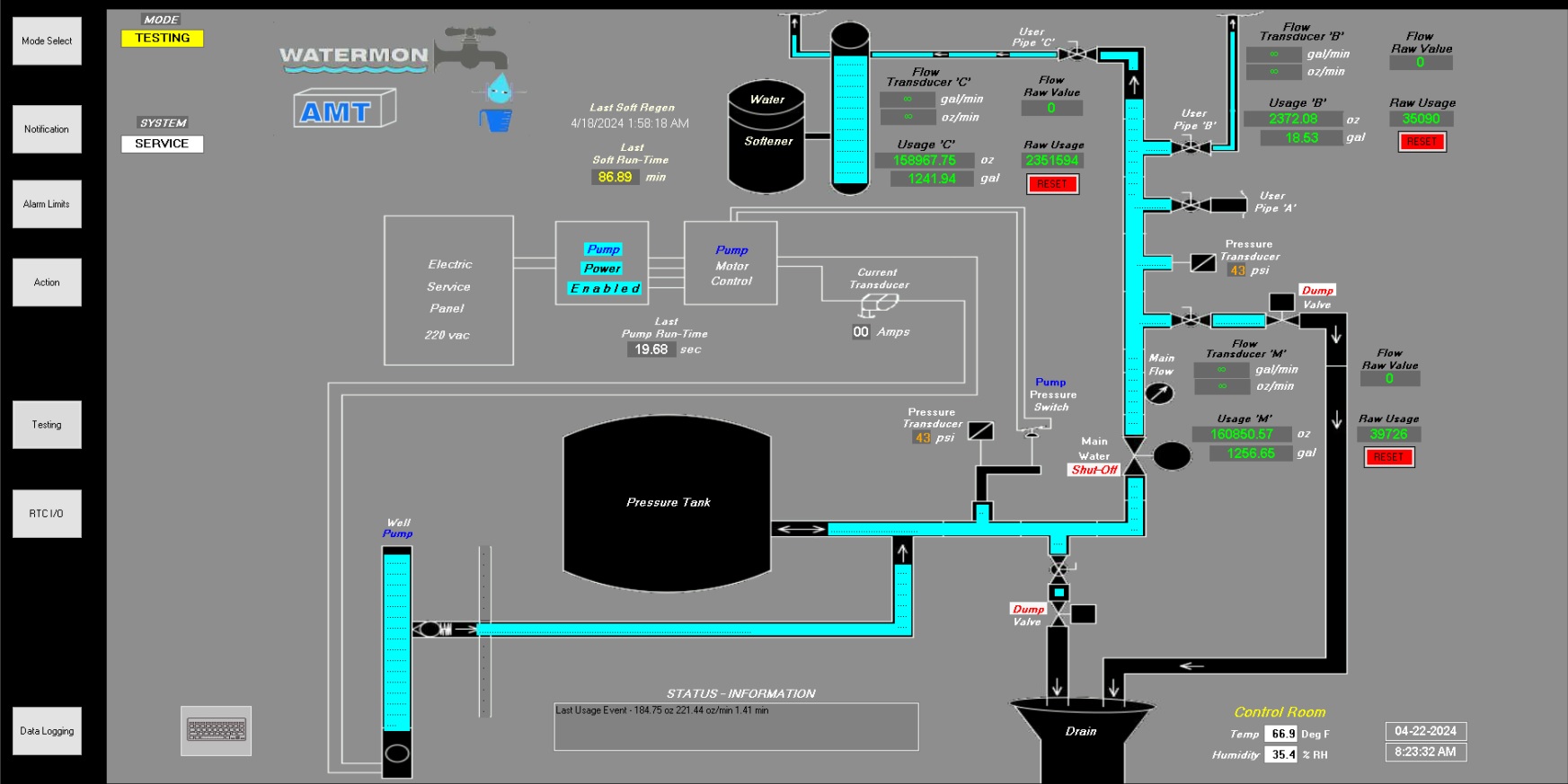

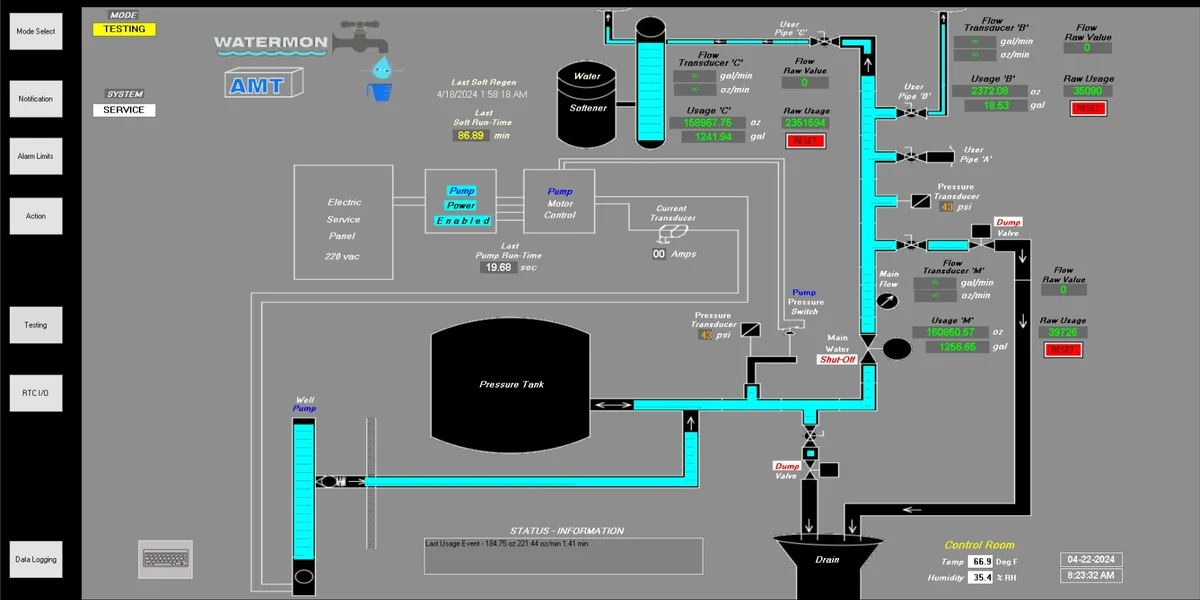

                                            Color Touch Screen interface w/ System Graphics... shows Real-Time system status
                                            Provision to Remotely Connect from Cell Phone or PC via VNC
                                            Well Pump Motor Power Shut-Off   1PH  220VAC - Solid State
                                            System Battery Back-Up - (standard)
                                            System Water / Pressure Dump Valves

               Software:
                                            Built-In Water System Testing
                                            User Configurable Action Settings and Alarm Limits
                                            User Configurable Notifications... Text Messaging to Cell Phone & Email
                                            Data Logging - Comma Delimited file

                            Additional - Control Support
               Inputs:
                                            Monitoring  -  Home and Away status (Security Alarm - SET)
                                            Monitoring  -  Water  Softener  status (Regeneration IN-PROGRESS)
                                            Monitoring  -  Physical Position of System Valves
                                            Control       -  Emergency System Shut-Off (Pushbutton)

               Outputs:
                                            Alarm - Relay Contact to 3rd party Monitoring (Security Alarm System -TRIGGER)
                                            Alarm - Relay Contact for Horn / Siren
